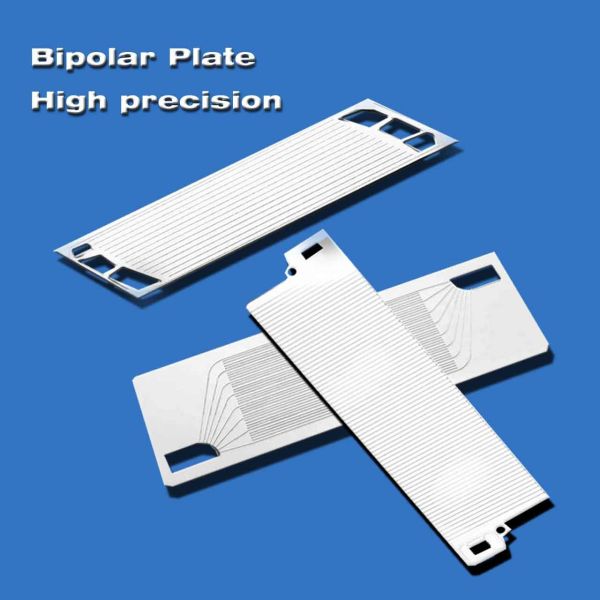

Precision Etching Metallic Bipolar Plates for Fuel Cell Electrolyzers
Bipolar Plates Overview
Xinhaisen's chemically etched bipolar plates deliver superior performance in fuel cells, electrolyzers, and flow batteries. Our photochemical etching technology enables complex micro-flow patterns with unmatched precision, optimizing gas/liquid distribution while minimizing pressure drop. These plates are critical for improving energy efficiency in hydrogen applications.
Bipolar Plates Key Advantages
·Ultra-thin designs (0.5-3.0mm) with high structural integrity
·Corrosion-resistant surfaces for acidic/alkaline environments
·Custom flow field patterns (serpentine, interdigitated, biomimetic)
·Zero mechanical stress vs. stamped/laser-cut alternatives
·Rapid prototyping → mass production transition
Bipolar Plates Specification
| Parameter | Specification |
| Material | Titanium, Nickel Alloys, etc |
| Thickness | 0.5mm - 3.0mm |
| Surface Roughness | Ra 0.1-1.6μm (mirror polish optional) |
| Flatness | ≤0.05mm/100mm |
| Active Area | 5cm² - 5000cm² |
| Electrical Conductivity | >1000 S/cm (metallic plates) |
Bipolar Plates Application
·Hydrogen Fuel Cells (PEMFC, SOFC, DMFC)
·Water Electrolyzers (PEM, AEM, alkaline)
·Redox Flow Batteries (VRFB, Zn-Br systems)
·CO₂ Conversion Systems
·Laboratory-on-chip devices
Quality Assurance
·100% automated optical inspection (AOI)
·Material certs: EN 10204 3.1, ASTM standards
·Ex-situ/in-situ corrosion testing
·ISO 9001 & IATF 16949 compliant
Easy to order! Welcome to contact us at any time!
