Precision Metal Etching 0.5mm 316L Printed Circuit Heat Exchanger Plates
Description of Printed Circuit Heat Exchanger Plates:
What is Printed Circiut Heat Exchangers?
Producing a printed circuit heat exchanger requires both chemical etching and diffusion bonding technologies. The flow channels are first etched onto metal plates using chemical etching, which are then stacked and solid-state joined through diffusion bonding to form a single, integrated block.
Specifications of Printed Circuit Heat Exchanger Plates:
| Material | Stainless Steel 316/316L, Titanium, Aluminum, etc. |
| Thickness | 0.5mm to 5.0mm can be customized |
| Size | Max to 1800*600mm, can be customized |
| General Tolerance | ±0.1mm |
| Processing | Photochemical machining/ metal etching/ Photo etching |
| Other Processing | Plating, Welding or other processing as requested |
Production Process Steps of Printed Circuit Heat Exchanger Plates:
1.Chemical etching the channels of printed circuit heat exchanger plates
2. Diffusion bonded printed circuit exchangers
We offer end-to-end solutions for chemical etching and diffusion-bonded printed circuit heat exchangers. With our specialized expertise, we integrate both processes seamlessly to deliver high-quality and efficient results for our customers.
How to custom Printed Heat Exchanger Plates from us?
1. Please send us your design.
We accept the following file formats:DWG, DXF, PDF, STP, Gerber, IGES, CorelDraw and AI.
2. Samples making lead time:3-10days
3. Express:By DHL, FedEx, TNT, around 3-7days.
Product Tags:
|
|

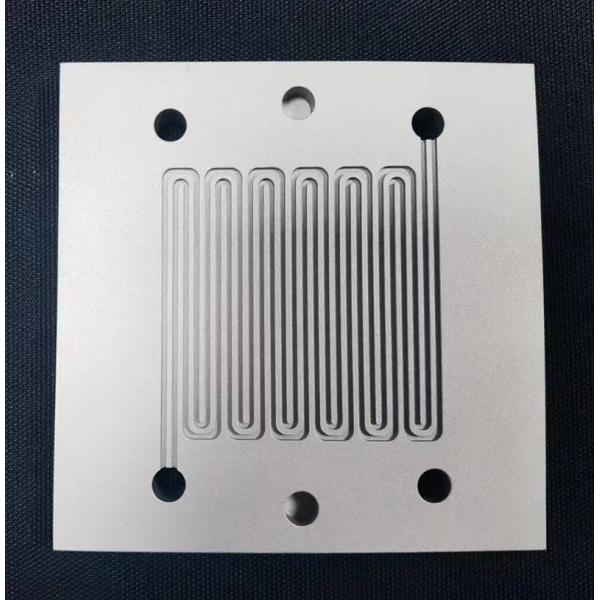

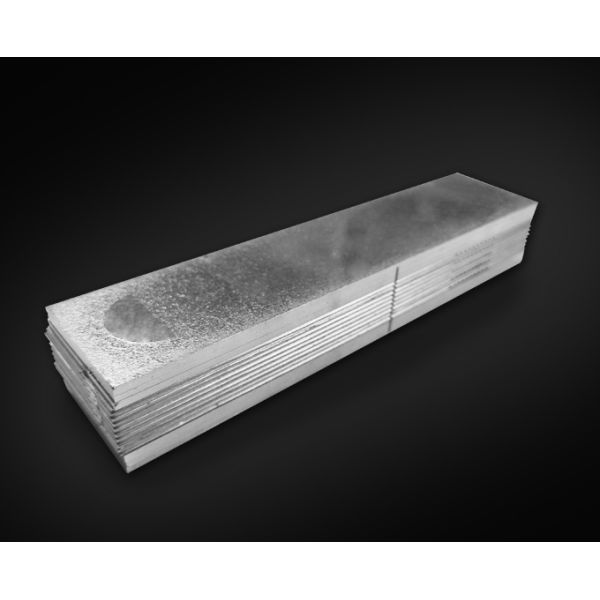

Precision Metal Etching 0.5mm 316L Printed Circuit Heat Exchanger Plates Images
|
